Display
- 1920 x 1080 (16:9) resolution
- H-Scanning frequency: 30kHz ~ 81kHz
- Maximum pixel frequency: 165MHz
- V-Scanning frequency: 56Hz ~ 85Hz
Mechanical Specification
- Package Dimensions: 2095 x 1488 x 618mm

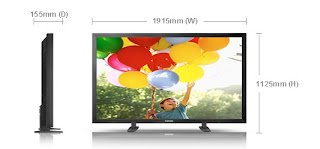

- Set Dimensions: 1915 x 1125 x 155mm
- Set Weight: 140kg
- Weight (package): 175kg
- 1400 x 800mm VESA wall mount
- Protection Glass
- Foot Stand (optional)
- Internal Media Player
Power
- AC 100 ~ 240V ~ (+/- 10 %), 50 / 60Hz power supply
- Power consumption (off mode): less than 5 Watts
- Power consumption: 1kW (max) / 930W (typ)
- Power consumption (sleep mode): less than 5 Watts
- Internal power source
- Stand-by power: Under 1Watt (Energy Saving ON)
Certification
- EMC certification: FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB 9254-2008, GB 17625.1-2003
- EMC certification: FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC(China): GB 9254-2008, GB 17625.1-2003
Panel
- 82" panel size (diagonal)
- S-PVA (DID) panel type
- 1920 x 1080 (16.9) resolution
- Pixel pitch (mm): 0.9405 (H) x 0.9405 (V)
- 1805.76 (H) x 1015.74 (V) active display area (mm)
- 600cd/m² display brightness
- 2500:1 Dynamic contrast ratio
- 178˚ / 178˚ viewing angle (H / V)
- Response time: 8ms
- Display: 8bit - 16.7million colours
- Colour Gamut: 72%
- 2000:1 contrast ratio
Operation
- Operating temperature 10˚C - 40˚C
- Operating Humidity 10 - 80%
Accessory
- Accessories: Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries, BNC to RCA Jack (3EA)
- WMN8270D, VMN8270D mount (optional)
Signal Input
- D-Sub, RS232C, BNC, DVI, HDMI, CVBS, S-Video signal inputs
- Separate H/V, composite, SOG sync signals
- Analog RGB, DVI-D, CVBS, HDMI, S-Video, Component video signals
Connectivity
- Analog D-sub, DVI-D inputs (RGB)
- CVBS input, Component input, BNC input, HDMI input
- RCA(L / R) input, Stereo mini Jack input
- DVI-D (Loop-out) output
- Stereo mini Jack Output
- RS232C (in / out)
General Feature
- All-in-one touchscreen
- Embedded Touch (IR), Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (15W + 15W), Plug and Play (DDC2B, DDC / CI), PIP / PBP, Video Wall (5 x 5), Pivot Display, Button Lock, Digital Daisy Chain, MagicInfo Pro, Windows XP embedded
Embedded PC
- CPU: Athlon x2 Dual-Core 4450e (2.3GHz)
- N / B: AMD RS780
- S / B: AMD SB700
- GPU: AMD RS780 (IGP)
- FDM / HDD: HDD 40GB
- Media player memory: DDR2 1GB
- Ethernet: Marvell 88E8055 Gigabit LAN
- Connectivity (USB): 4EA
- D-sub (RGB OUT) connectivity output
- Connectivity (others): LAN RJ45
Feature
- Feature accessories: MDC Program, User Manual, Tablefoot 2pcs, Power cable, Remote controller
- 15W x 2ch (Built-in) speakers
- Cabinet colour: Black
- Mac compatible
- DDC 2B Plug & Play
- Embedded Touch (IR), Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (15W + 15W), Plug and Play (DDC2B, DDC / CI), PIP / PBP, Video Wall (5 x 5), Pivot Display, Button Lock, Digital Daisy Chain, MagicInfo Pro, Windows XP embedded
- Wall Mounting Kit Available (option)
